Alright. I don't have as many detail shots of the cork installation but I think there is enough to see what I did. It's not that complicated. I checked my room for square and I was within 1/4" overall so I didn't worry any more about that; I just started laying the stuff. First off, you must maintain a 1/2" gap all around between the flooring and the walls. I stuck 1/2" shim packs against the wall and cabinet base to hold the planks at the right distance. These are pulled out later. I works easier to snap the planks together long way and then snap that length into the preceding length, as I have pictured. Remember to stagger your joints. I simply used the drop from one end to start the next run. This is fine as long as your drops are at least 10 inches long.
The first plank lays flat on the floor and then you insert the next plank at and angle and press down, wiggling it a little. When it snaps in place it is very hard to see the joint.
So, you just keep working your way across the floor, making sure to maintain your 1/2" gap. The last plank is a little aggravating to get in but not impossible. It helps greatly to have a small pry bar so you can pry against the wall and snap the plank in place that way. Sorry I don't have photos; I think Jack was occupied with something else or napping or something.

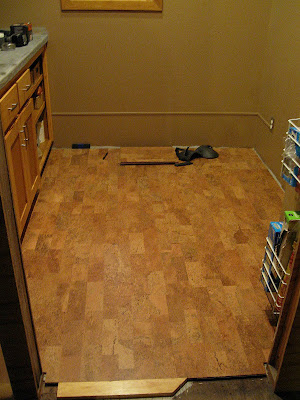

I removed the plastic shim packs holding the 1/2" space and replaced in with 1/2" foam strips. Just little pieces about 4-5 inches long. Just enough to hold the flooring in place but it must be something that will allow the floor to expand and contract and foam works fine. I then installed the base trim all around, which of course, covers the gap and foam. And voila'! a finished floor!
I am quite happy with this cork. You can read more about it here. It is a 'green' material; very renewable, healthy for your home and looks great. Supposedly, the resin in natural cork also makes it fire and insect resistant.
This is a 6' x 8' area and it took 2 boxes plus 1 plank from the 3rd box. Each box costs about $63 and covers just under 22 square feet, if I remember correctly. This brand and type comes with a 25 year surface warranty and a limited lifetime structural warranty.
I have since moved my little upright freezer back into the pantry and installed a few other little hooks and hangers. I just need to seal the counter top and install the backsplashes and I'll be completely finished there. Seems like an awful lot of work for one little dang room.
